第三课 NMS的VoIP产品应用介绍
--IP电话会议服务器
1. 系统配置
硬件
(1)CG6000C系列:适用于IP电话解决方案的大容量、高性能的开发平台。
作为屡获殊荣的Fusion(tm)产品系列中的新成员,Convergence Generation(tm)(CG)6000C正是这样一个高扩展性、高性能的IP电话解决方案开发平台。与其它有竞争力的IP电话产品相比较,CG 6000C专门解决了低延迟、媒体流处理功能,并由NMS功能强大、设计灵活的软件开发环境Natural Access所支持。
CG6000C是NMS公司专为高密度媒体网关应用而设计生产的,能同时支持H.323和MGCP。
CG6000C提供:
(2)AG4000系列:通用的IP及PSTN数字接口板卡系列,具有PCI或CompactPCI总线接口。适用于高性能电信系统的开发。
NMS的Alliance Generation 4000(AG 4000)系列是带有数字信号处理器(DSP)和数字PSTN接口的PCI和CompactPCI 板,专为开发高性能的通讯系统而设计。它的设计是基于NMS Communications在业界领先的Alliance Generation DSP结构,这种结构集开放的开发环境、丰富的功能特性、高扩展性和不断增强的处理能力等优点于一身。AG 4000系列以其超群的多媒体处理能力服务于广泛的语音和信令应用,是低成本高效益的理想平台。详见www.nmss.com.cn。
软件
2. IP电话会议服务器介绍
(1)IP会议组件

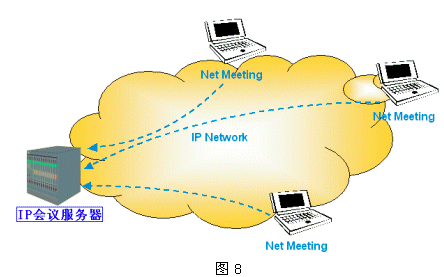

如图8所示,IP会议包含两个基本组件:IP会议服务器(IP Conference Server)和IP会议客户端(如Netmeeting等)。

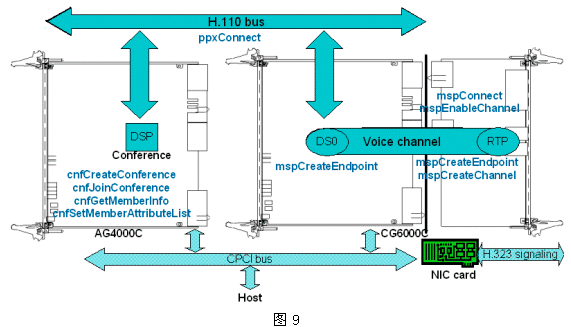

在服务器端包含前面的两个硬件平台:CG6000C+AG4000C。构成的系统(CompactPCI结构)如图9所示,配置非常简单。
(2) IP会议重要数据
每次会议呼叫的系统信息和用户信息都必须存储起来。它们包括:
(3) IP会议流程

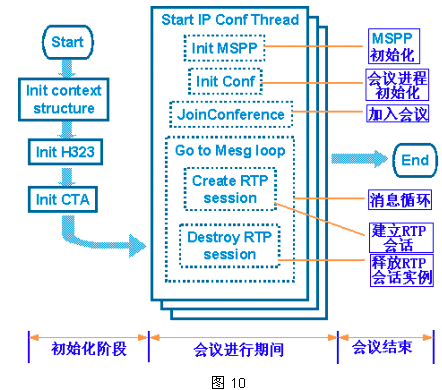

整个IP会议大概过程可以用图10来说明,各子流程均由MGCP/H.323的相关API函数完成。
1. VoIP和传统电话有什么不同,主要优势表现在哪儿?
2. VoIP有哪些标准,各有什么特点?
3. MGCP包含哪些功能? 缩略语
缩略语
C7 |
Common Channel Signaling System No. 7 (also called "SS7") |
ISDN |
Integrated Services Digital Network |
ISUP |
Signaling System 7 ISDN User Part |
M2PA |
MTP Level 2 Peer-to-Peer Adaptation Layer |
M2UA |
MTP Level 2 User Adaptation Layer |
M3UA |
MTP Level 3 User Adaptation Layer |
MAP |
Mobile Application Part |
MSPP |
Media Stream Processing Protocol(媒体流处理协议) |
MSSP |
Multi Service Switching Platform(多业务交换平台) |
MTP |
Signaling System 7 Message Transfer Part |
PLMN |
Public Land Mobile Network |
PSTN |
Public Switched Telephone Network |
SGCP |
Simple Gateway Control Protocol(简单网关控制协议) |
SEP |
Signaling End Point(信令端结点) |
SCP |
SS7 Service Control Point(SS7业务控制点) |
SS7 |
Common Channel Signaling System No. 7 (also called "C7") |
SSP |
SS7 Service Switching Point (also called a "central office" switch) |
STP |
SS7 Signal Transfer Point |
SUA |
SCCP User Adaptation Layer |
TCAP |
Signaling System 7 Transaction Capabilities Part |
TCP |
Transmission Control Protocol (often called "TCP/IP") |
参考资料
主要网站资源
IETF |
|
ITU |
|
IMTC |
|
ETSI |
|
NMS - Open Architecture Platform |
|
Archive of many standards docs |
|
MeGaCo Working Group |
|
Home of megaco & sigtran |
|
International Softswitch Consortium |
|
Open Source H.323 Organization |
|
Voice on the Net sponsor |
VoIP标准汇编
下面的内容来自http://www.protocols.com/voip/standards.htm。
ITUT 标准和建议
H.323 V2 |
Packet-based multimedia communications systems |
H.225.0 |
Call signaling protocols and media stream packetization for packet-based multimedia (includes Q.931 and RAS) |
H.225.0 Annex G |
Gatekeeper to gatekeeper (inter-domain) communications |
H.245 |
Control protocol for multimedia communications |
H.235 |
Security and encryption for H-series multimedia terminals |
H.450.x |
Supplementary services for multimedia:(多媒体补充业务) 1. H.323补充业务所支持的一般功能Generic functional protocol 2. 呼叫转移Call transfer 3. 遇忙娱乐Diversion 4. 保持Hold 5. Park & pickup 6. 呼叫等待Call waiting 7. 消息指示Message waiting indication |
H.323 Annex D |
Real-time fax using T.38 |
H.323 Annex E |
Call connection over UDP |
H.323 Annex F |
Single-use device |
T.38 |
规定通过IP网络的第三类实时传真通信过程 |
T.120 series |
多媒体会议的数据协议(Data protocols for multimedia conferencing) |
IETF 的RFC文档和草案
RFC 2543 |
SIP: Session initiation protocol |
RFC 2327 |
SDP: Session description protocol |
Internet Draft |
SAP: Session announcement protocol |
网关控制协议标准
H.GCP |
Proposed recommendations for gateway control protocol |
ITU |
Internet草案 |
MGCP: Media gateway control protocol |
IETF |
Internet草案 |
MEGACO protocol |
IETF |
草案 |
SGCP: Simple gateway control protocol (简单网关控制协议) |
IETF |
Internet草案 |
IPDC: IP device control (IP 设备控制) |
IETF |
媒体传送协议标准
IETF
RFC 1889 |
RTP: Real-time transport protocol (实时传输协议) |
RFC 1889 |
RTCP: Real-time transport control protocol (实时传输控制协议) |
RFC 2326 |
RTSP: Real-time streaming protocol (实时流媒体协议) |
媒体编码
ITU 部分
Standard |
Algorithm |
Bit Rate (Kbit/s) |
Typical end-to-end delay (ms) (ex. channel delay) |
Resultant Voice Quality |
G.711 |
PCM |
48, 56, 64 |
<<1 |
Excellent |
G.723.1 |
MPE/ACELP |
5.3, 6.3 |
67-97 |
Good (6.3), Fair (5.3) |
H.728 |
LD-CELP |
16 |
<<2 |
Good |
G.729 |
CS-ACELP |
8 |
25-35 |
Good |
G.729 Annex A |
CS-ACELP |
8 |
25-35 |
Good |
G.722 |
Sub-band ADPCM |
48, 56, 64 |
<<2 |
Good |
G.726 |
ADPCM |
16,24,32,40 |
60 |
Good (40), Fair (24) |
G.727 |
AEDPCM |
16, 24, 32, 40 |
60 |
Good (40), Fair (24) |
Standard |
Algorithm |
Bit Rate (Kbit/s) |
Picture Quality |
H.261 |
离散余弦变换(DCT)+运动补偿 |
px64p为ISDN B 通道数 |
稍差 |
H.263 |
H.261的增强版 |
各种速率 |
中等 |
